The new Gemello Revive system from SIG Building Solutions provides:
- Enhanced thermal performance.
- Improved acoustic performance.
- Reduced operating costs through better insulation
- Increased building service life
- Building re-use rather than replacement
- Cleaner, modern lines to elevations and roof
The Gemello® Revive system can be tailored to suit the aesthetic and design requirements of an existing building.

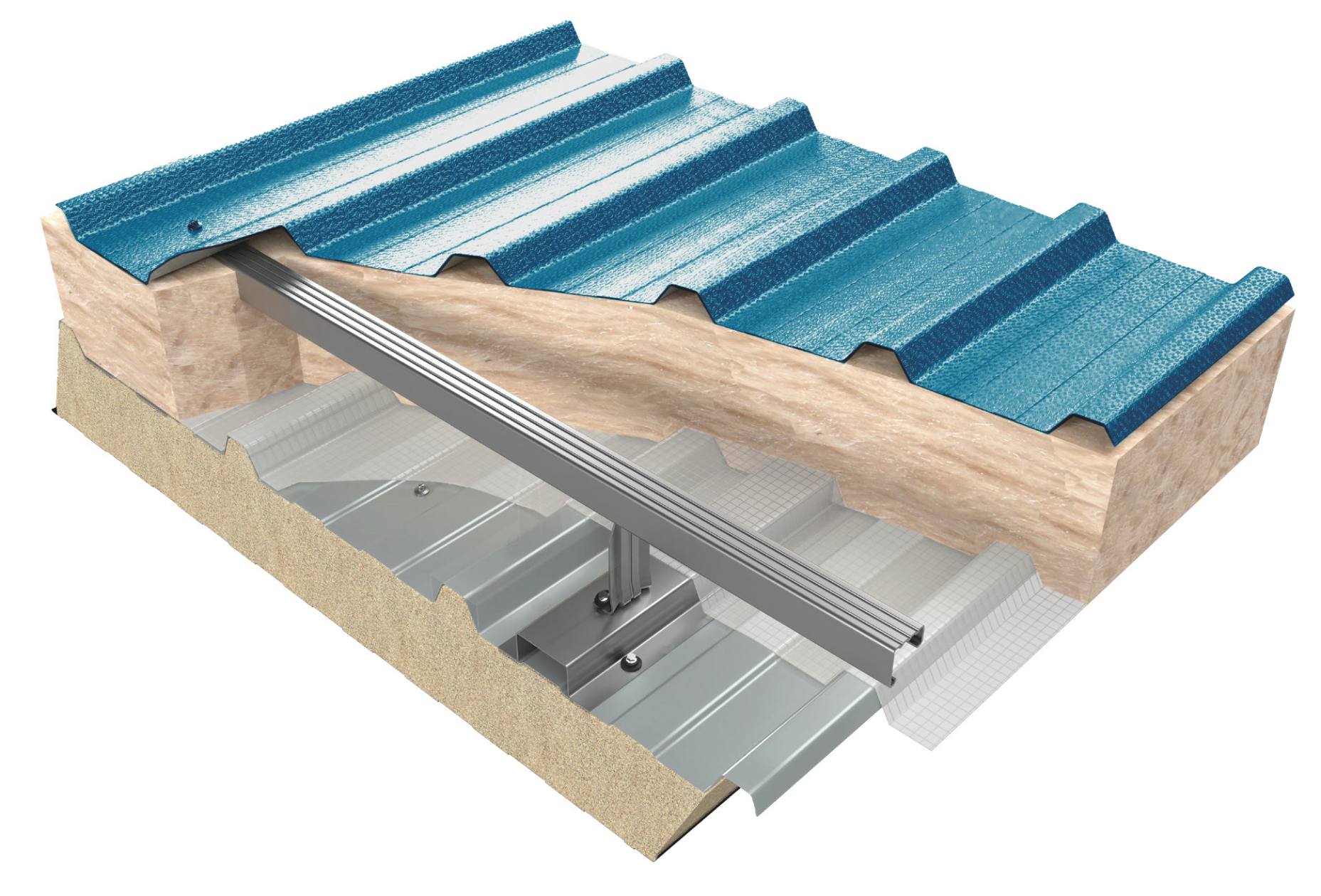

Roof system assembly:
- 0.7mm steel top sheet.
- Spacer system.
- Mineral wool insulation with 10% compression.
- 0.7mm steel liner, sealed as vcl and air barrier.
The wide range of external cladding profiles are available in an extensive range of finishes and colours enabling a fresh and clean look to existing buildings.
This design flexibility of the Gemello® Revive system makes it suitable for use on projects across many market sectors including industrial, retail, office, health, education and leisure.
The Gemello® Revive system is suitable for over-cladding both existing composite panel and twin skin buildings, fixing into both secondary steelwork and timer support structures.
Gemello® Revive systems provide both aesthetic and thermal improvement to your building
Site assembled in-plane GRP rooflight are available in a range of Gemello® Revive roof profiles, to go over the top of existing rooflight and provide natural daylighting depending on the condition of the existing rooflights.
A complete range of gutters and rainwater goods can be manufactured and supplied to meet the specific requirements of an individual project.
Gutters are fabricated in a variety of materials including aluminium, pre-galvanised steel, pre-coated steel with a PVC finish, and membrane lined gutters, to suit the designer’s needs.
Insulated membrane lined gutters are available for designs where the gutter form part of the insulated building envelope.
Flashings can be manufactured in range of finishes and designs to suit a customer’s design.
Fasteners, Fillers and Sealants
All fasteners, spacer systems, sealants and profiled fillers are to be supplied by SIG Building Solutions to comply with the Gemello® Revive system guarantee.
The Gemello® Revive profile range includes trapezoidal roof and wall profiles, and a corrugated wall profile. All roof profiles are classed non-fragile to the materials standard in the Advisory Committee for Roof Safety “Red Book” ACR[M]001:2019: 6th Edition. The improved thermal performance comes from an insulation cavity formed by a galvanised top-hat and engineered bar and bracket spacer system with the void filled using non-combustible mineral or glass fibre insulation. Thermal U-values as low as 0.14W/m²K are possible for lower U-values, contact the Technical team for further details
